Description

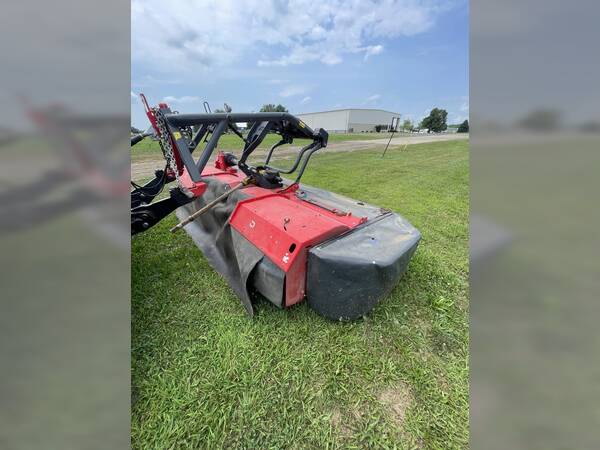

The Disc 340 F (Base) is a central front-mounted disc mower designed to adapt seamlessly to uneven terrain. It’s available with two hitch options: the S-FLOW hydraulic–pneumatic suspension, or the Classic DSS dual-spring system.
Feature Details
Working Width 3.32 m [10′]
Discs / Blades 8 discs / 16 blades
Power Requirement 52–70 hp
Capacity ~4 ha/h
Weight 681.5 kg (Base); 863 kg (with S-FLOW)
PTO Speed 1000 rpm
Cutting Height 40–70 mm
Windrow Width 1.6–2.6 m
Driveline Input PTO shaft with slip clutch, angle gearbox, double universal joint
Blade Change System QCS (Quick Change System)
Safety DDSS (disc drive safety with 4 brass shear pins)

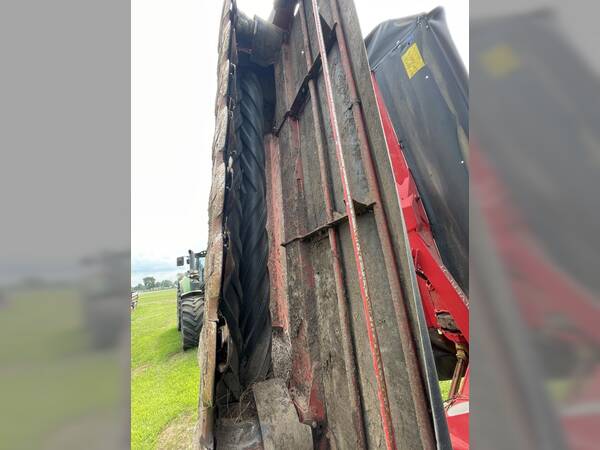

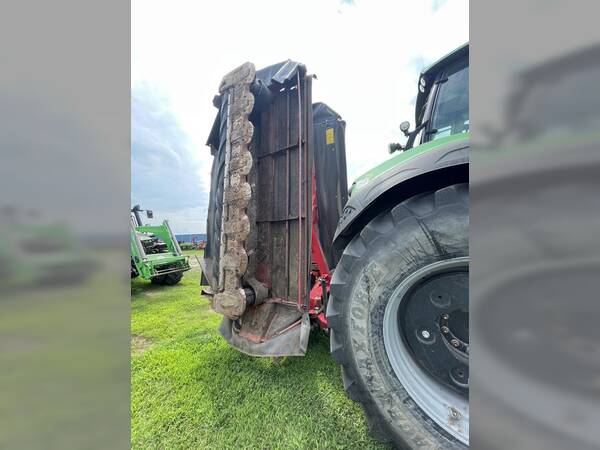

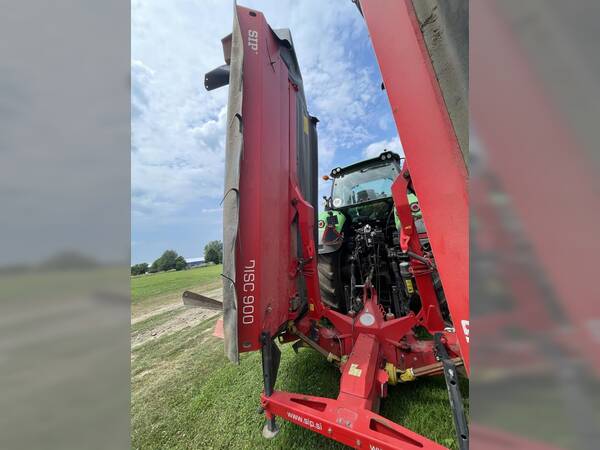

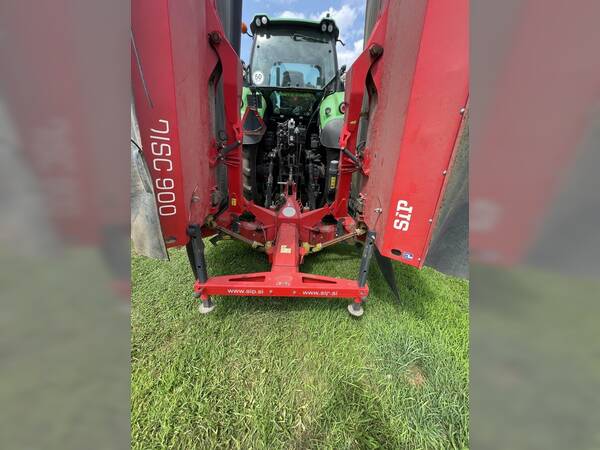

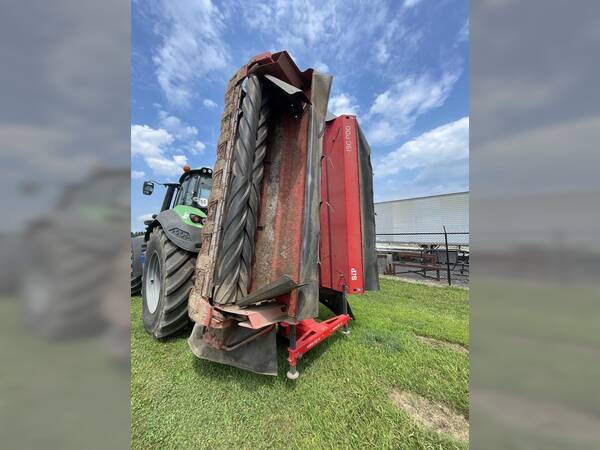

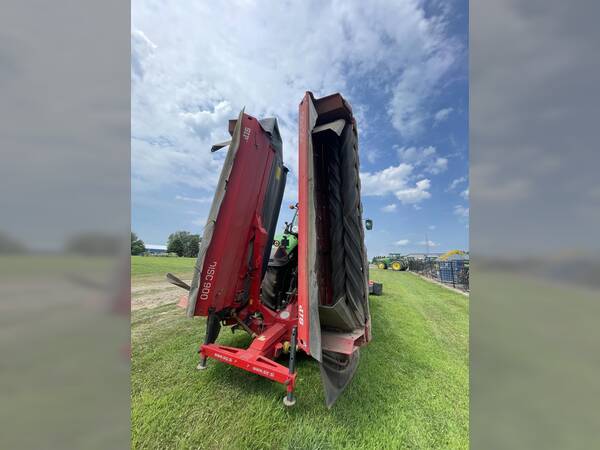

SIP Silvercut Disc 900 C (Rear-Mounted Combination Mower)
10′ cutting width on each side.
almost 30′ of cutting combined with all three mowers.
Rubber conditioners.
Collision Safety System (CSS): Allows the cutter bar to quickly move backward and upward when hitting an obstacle, and then automatically returns to position
