Description

FARMotion 3-cylinder turbo diesel, 2.9 L displacement

Gross power: 80 hp @ 2,000 rpm, rated 75 hp @ 2,200 rpm

Max torque: 252 lb‑ft @ 1,600 rpm; 41‑43% torque rise

Tier 4 emission compliance with a maintenance-free DOC-only system (no DPF or SCR)

Power shuttle transmission (synchro‑shuttle) with comfort clutch, “Stop & Go” auto de‑clutch function

Gearbox: 15×15 mechanical manual with optional creeper gear setting

Electro-hydraulic 4WD and differential locks; integrated front axle brakes for heavy-duty contro

Hydraulic flow: approx. 12.6 gpm (≈ 48 L/min)

Up to 3 standard double-acting rear remotes

Rear PTO (540 rpm mechanical engagement); PTO efficiencies down‑rated into eco mode for fuel saving
Mechanical 3-point hitch with up to 5,500 lb lift capacity (≈ 2,500 kg)

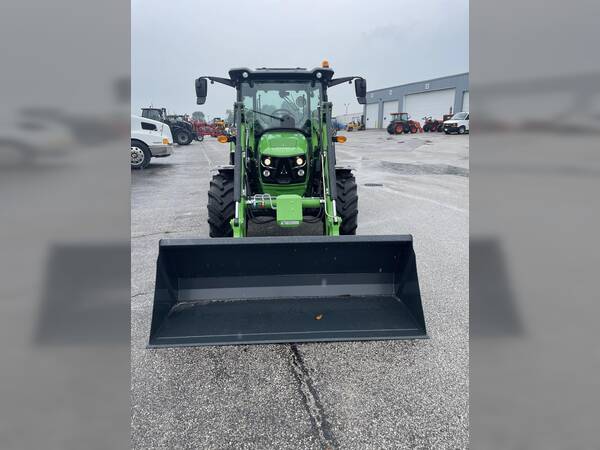

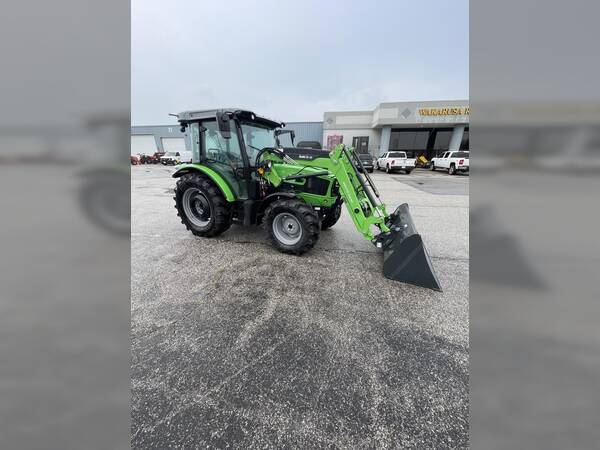

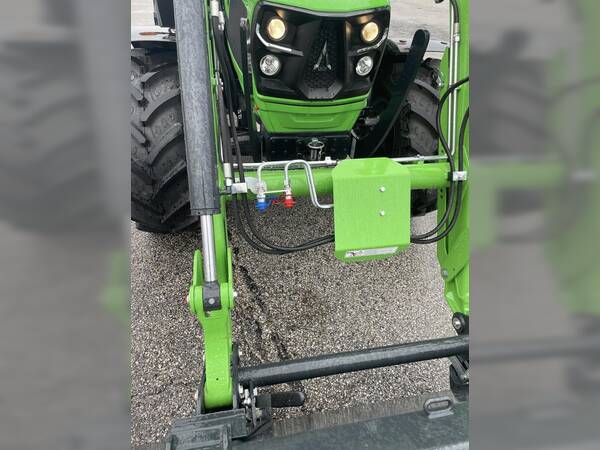

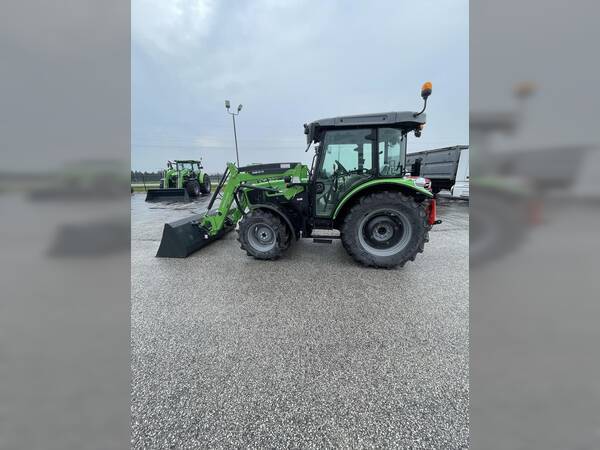

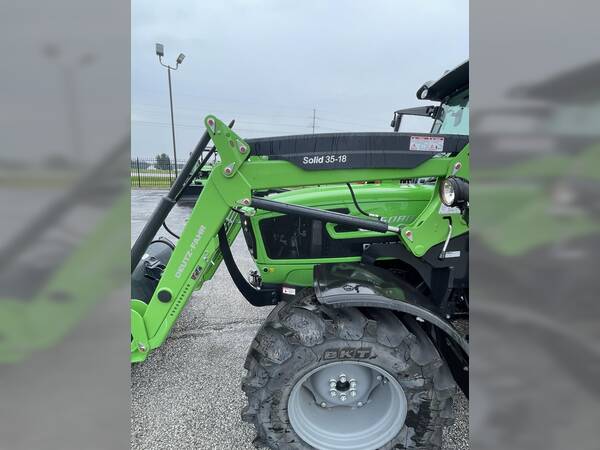

Supports loader attachments, often matched with STOLL loaders offering lift heights up to ~9 ft and ~3,300 lb lift capacity at ground level

Base weight: 6,800 lb (≈ 3,200 kg); max permissible weight ~11,450 lb

Wheelbase approx. 82.6 inches (2.10 m)

Dimensions: Length ~152 in (3.86 m), width ~72.5 in (1.84 m), height ~97.3 in (2.47 m) including ROPS/cab

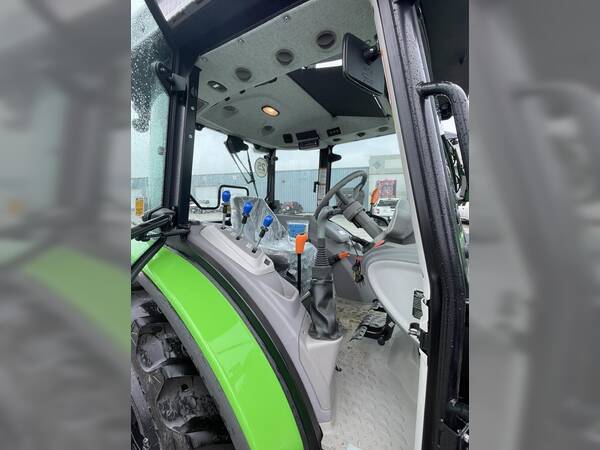

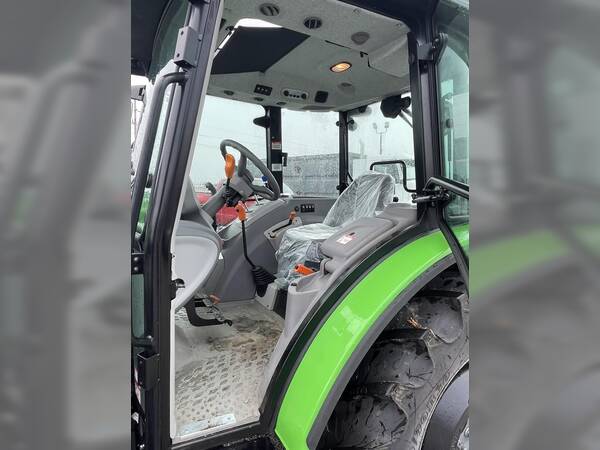

Spacious full-feature cab with flat rubber floor, wide dual-side entry, suspended seat and trainer seat, and excellent 360° visibility

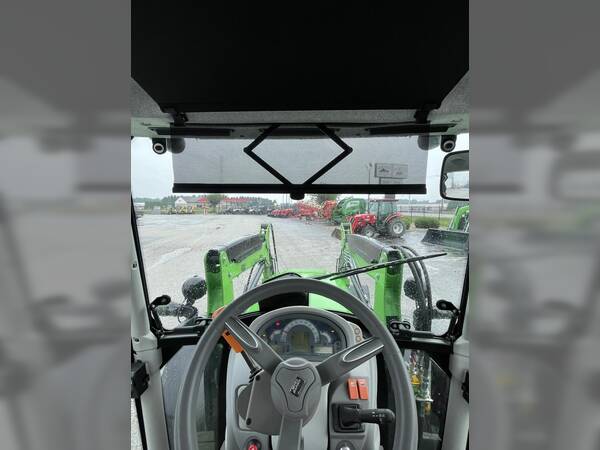

Ergonomic layout with digital/analog dash, adjustable steering, HVAC (heat & air), radio & Bluetooth, high-visibility roof panel for front loader use
