Description

Max Load / Capacity 15 tons
Hopper Volume 225 cu ft
Hopper Length 16 ft
Hopper Width 74 in
Hopper Depth 37 in
Overall Length 24 ft
Overall Width 94 in
Overall Height 78 in
Wheel Track (center) 80 in Tires (standard) 21.5L × 16.1, 14-ply
Weight (empty) 5,700 lbs
Walking beam suspension (heavy duty) for handling loads and reducing stress on axle components
Top-driven hydraulic spinners (spinner drive motors mounted above the flow of material)
PTO or hydraulic body chain drive (depending on configuration)
Unibody, fully welded design (hopper & body are one integrated weldment)

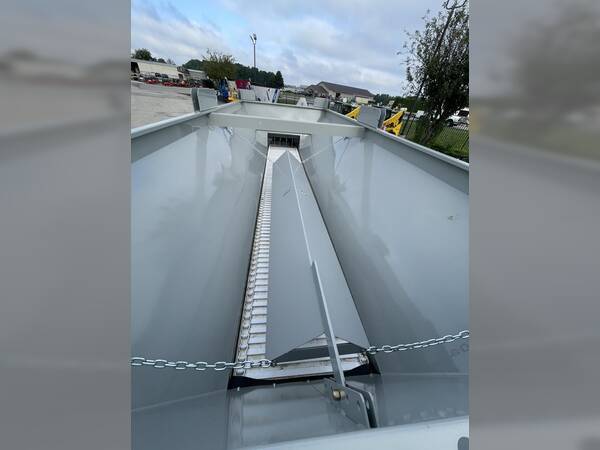

30″ slat-style conveyor chain
53° hopper side walls (to promote material flow and reduce bridging)
4″ vertical drop pan (to reduce bridging)
Telescoping chain tensioners, self-aligning idler shafts, structural reinforcements, extra body bracing
Optional features: fertilizer kit (low-rate spreading down to ~200 lb/acre), VRT (variable rate technology) compatibility, tarps, flotation tires, tarping systems, shredders/agitating mechanisms, lighting, etc.
