Description

Type: Deutz TCD 3.6 L04 4-cylinder Stage V engine

Power: Approx. 136 HP (rated), with excellent torque and fuel efficiency

Displacement: 3.6 liters

Common rail with turbocharger and intercooler
Transmission – RVSHIFT
RVSHIFT is a fully automatic powershift transmission (no clutching needed)

20 forward / 16 reverse gears

Speed range: 0.2 to 50 km/h

Includes automatic and manual shift modes for operator convenience

Smart shifting based on load and engine speed

PowerShuttle with adjustable shuttle response

Hydraulic pump capacity: Up to 90 L/min (Load Sensing)

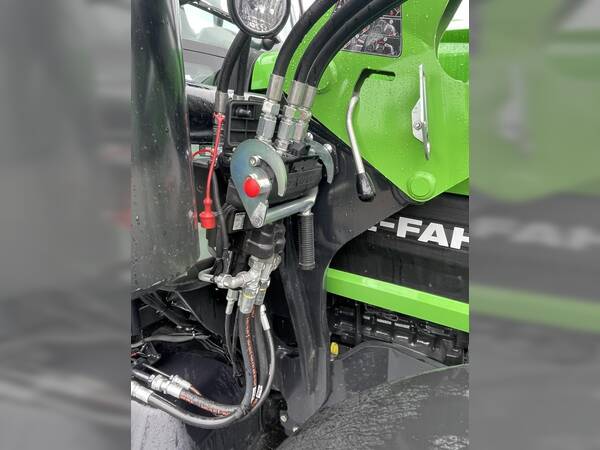

Up to 4 rear remote valves

Electronically controlled rear lift

Lift capacity: Approx. 5,400 kg

Standard 540 / 540E / 1000 / 1000E RPM

Auto PTO engagement/disengagement

MaxVision Cab: Spacious and quiet with excellent visibility

High-comfort air suspension seat

7″ iMonitor terminal (optional) for machine control and precision farming

Ergonomic joystick and multi-controller

Automatic climate control and LED lighting options

Front axle suspension available

ISOBUS compatibility

Front linkage available (up to 2,800 kg capacity)

Designed for low cost of ownership and ease of maintenance
